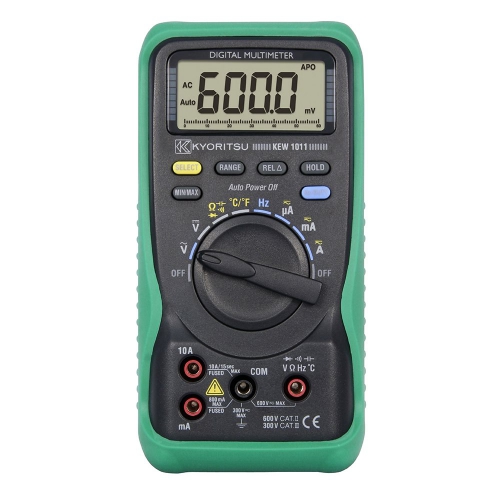

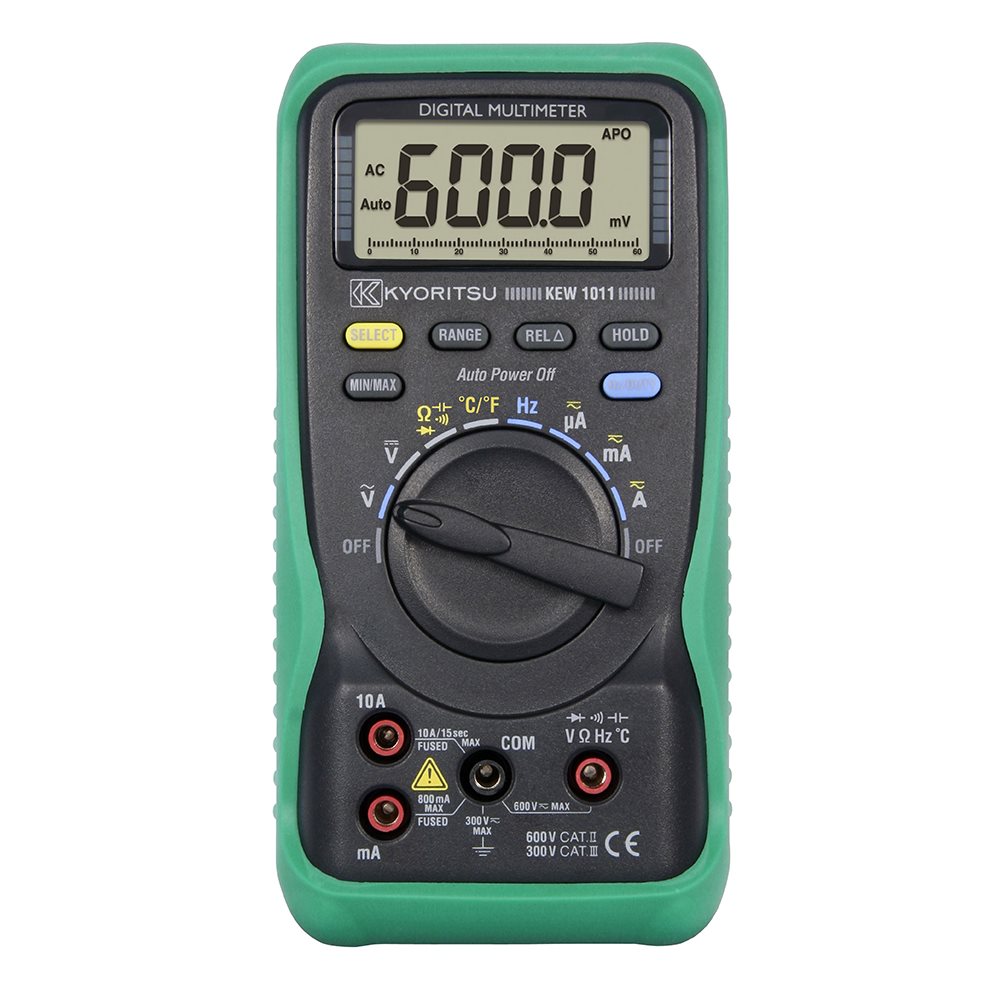

1011 - DIGITAL MULTIMETER V AC/DC, A AC/DC, R, f,t° Duty
back to category
Description
General features
6040 measuring points with bar graph display
MIN/MAX function for the minimum & maximum value
REL (relative value) function to display the measurement variation. The initial value at the start of the measurement is stored as a reference value (= zero). The difference between the later measured values and the reference value is shown on the display.
Temperature measurement in °C and °F
Supplied with K-type temperature probe (8216): -50~300°C (-58~572°F)
DUTY function (possibility to measure pulse width/pulse period)
Current ranges protected by 600V . ceramic fuses
To belong
7066A (test leads),
8216 (Type K Temperature Probe) (1011 only)
ceramic fuse [0.8A/600V] × 1 (installed)
ceramic fuse [10A/600V] × 1 (installed)
R6P × 2, manual
Product downloads
